Are you a homeowner investing in your first standby unit before storm season hits your area? Have you been searching for the perfect portable equipment to take with you on contracting gigs? Is your current system sputtering and stalling for no apparent reason? If you answered yes to any of these questions, then it’s time to learn a bit about the importance of a generator mixer assembly.
Whether you’re looking for a replacement part or just curious about the inner workings of a generator, we’ve got you covered. Find all your queries answered and get to know your generator mixer assembly today.

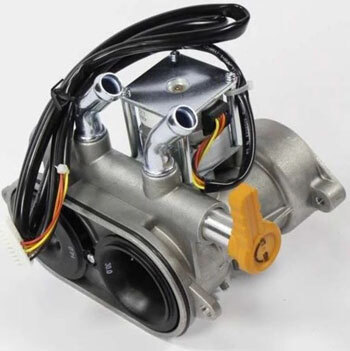

What is a Generator Mixer Assembly?
Unless you’re a trained technician, there’s a good chance that you’ve never heard of a generator mixer assembly before. Made up of a permanently paired mixer and stepper motor, this assembly component is calibrated at the factory and designed to work as a single unit. These parts work together to blend air and fuel in precise ratios before sending them to the engine for further combustion.
What Are the Main Functions of a Generator Mixer Assembly?
The main function of a generator mixer assembly is to improve fuel efficiency. By accurately metering the fuel-to-air ratio needed to achieve the perfect in-system balance, this part burns exactly what is needed for maximum power output—no more, no less.
Generator mixer assemblies are responsible for the unit providing reliable combustion. Ideally, this component can ensure a perfectly atomized and blended mixture that ignites when needed and burns all the way through. If this part breaks, your unit will fail to generate consistent power and will experience automatic safety shutdowns.
Generator mixer assemblies also affect the reliability of your equipment’s performance. By stabilizing engine operation and preventing sputtering, power drops, or electrical load surges, this part helps your system run smoothly for longer.
How Does a Generator Mixer Assembly Work?
The generator mixer assembly is designed to create the ideal combustible vapor needed for engine efficiency—but how? When air is pulled into the engine, it passes through the mixer. The assembly incorporates the fuel directly into this initial air intake, creating a highly combustible mixture. The combustible mist is then drawn into the intake manifold and engine cylinder, where it will be compressed by the piston, ignited by the spark plug, and burned to generate the desired mechanical energy needed for the alternator to convert into electricity.
What Pieces Come in an OEM Generator Mixer Assembly?
Though the exact parts will vary depending on your specific model, an OEM generator mixer assembly will typically include a few of the same inseparable components. Remember, these pieces are not sold separately, as they are designed to work as one integrated, pre-calibrated unit.
The 5 Core Parts of a Generator Mixer Assembly:
- Mixer body
- Stepper motor
- Control paddles and rods
- Mounting gaskets
- Mounting hardware
1. The Mixer Body
The mixer body, sometimes called the venturi, refers to the housing that precisely blends gaseous fuel with combustion air. It provides the physical pathway where the ratio can safely intersect and combine. While it acts similarly to a carburetor, working to ensure the engine receives the optimal air-to-fuel blend, it is not part of the same assembly system.

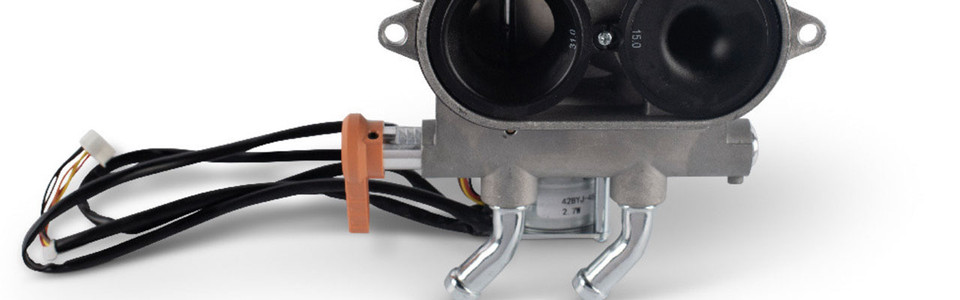

2. The Stepper Motor
Found in more modern generators, the stepper motor acts like an electronically controlled throttle. By adjusting the engine’s RPM and fine-tuning the air-fuel mixture, the stepper motor helps match changes in electrical demand to ensure a stable and safe power output. Having an OEM generator mixer assembly with a stepper motor makes things run more simply, leads to cleaner energy output, and helps the longevity of your machine.
3. The Control Paddles and Rods
In standby generators, the control paddles and rods are small, but mighty mechanisms, aiding in achieving the precise combustible mixture required to generate enough engine power. Located inside the housing, these internal components act as throttles and choke plates to break up the fuel and swirl the air for a more efficient burn. If the rods are bent or the paddles get stuck, the generator may surge or fail to produce stable power.
4. The Mounting Gasket
The best generator mixer assembly parts come with a thin, specialized seal that sits between the mixer and the engine’s intake manifold or airbox. This mounting gasket is designed to create an airtight seal, preventing unmetered outside air from entering the fuel system and messing with the required ratio.
5. The Mounting Hardware
The mounting hardware of a generator mixer assembly primarily consists of machine screws, washers, and O-rings that help the operator secure the mixer body to the engine’s intake manifold and airbox base. Without it, your OEM generator mixer assembly would not stay in place.
Where Does the Generator Mixer Assembly Go On the Unit?

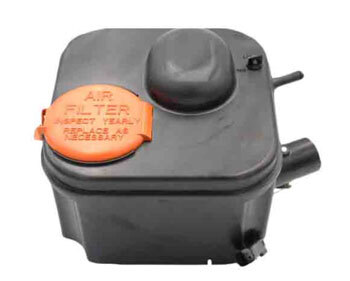

On a standby generator, the OEM generator mixer assembly sits between the cylinder heads beneath the main air filter box, where the intake tubes connect to the engine. If you need to access this area for maintenance or replacements, you’ll typically need to remove the top enclosure, air box, and air filter to expose the mixer.
What is the Difference Between a Generator Mixer Assembly and a Generator Carburetor Assembly?
Though the two have very similar functions, the generator mixer assembly and carburetor assemblies are not the same thing. In fact, they’re rarely found on the same machine. The type of assembly your unit has largely depends on its fuel type.
A carburetor assembly is mainly used in gasoline-powered systems, like many portable generators. Using a float bowl, jet, and venturi, the carburetor draws the liquid fuel into the airstream, vaporizes it, and sends it into the engine cylinder. If the fuel is left sitting inside the carburetor for too long, it will get clogged or gummed up, making future uses more difficult.
A mixer assembly, on the other hand, is strictly used for generators that run off gaseous fuels, like propane or natural gas. Since no vaporization is needed for these fuels, the mixer uses valves to regulate the flow of gas and air based on the engine’s current demand. This makes it the preferred choice for large, permanently installed home generators.
What Kind of Assembly Does a Diesel Generator Use?
If you have a generator that runs on diesel, it does not use a carburetor or a mixer. Instead, since it needs an extreme level of compression, the fuel is injected directly into the cylinder, rather than mixing the air-to-fuel ratio externally beforehand. This is called a close-coupled assembly.
What Happens if the Generator Mixer Assembly Fails?
If your OEM generator mixer assembly fails, the engine will begin to run at erratic speeds and incorrect frequencies. Too many of these misfires and start-up issues will result in permanent damage to your equipment. If you suspect your mixer assembly is failing, you should immediately turn off your generator and look into buying a replacement part.
How Often Should You Replace Your Generator Mixer Assembly?
A well-designed and implemented OEM generator mixer assembly typically lasts thousands of operational hours. Since there is no expected time frame for when this component will need to be replaced, you can hold off on buying a new one until your current piece either fails or starts to show signs of severe wear.
Signs It’s Time to Upgrade Your Generator Mixer Assembly:
- Sputtering or stalling: If any component in the assembly has corroded or the stepper motor fails, your generator may struggle to turn over or fail to engage.
- Mechanical binding: If the throttle plates or rods get stuck when manually moved by an operator, the entire assembly should be swapped out.
- Unpredictable engine surges: If the generator’s RPM fluctuates continuously or at random, this may mean the attached stepper motor is failing to adjust the air-to-fuel ratio.
- Wear-and-tear: If the mounting gaskets and O-rings show signs of degrading or the delicate internal mechanisms have worn down, the generator may experience hesitation when switching fuel sources.
- Noticeably increased fuel consumption: If the mixer becomes stuck or fails to seal properly, your generator will burn through fuel much faster than normal.
Can You Replace One Part of a Generator Mixer Assembly?
While it may sound like you can replace just one damaged component of your OEM generator mixer assembly, that isn’t the case. Most modern units use integrated parts, where the stepper motor is permanently attached to the mixer body at the factory and calibrated as a single unit. If you notice signs of damage, you’ll likely need to buy a completely new assembly.
Can You Replace a Generator Mixer Assembly Yourself?
At Generator Magic, safety is always our number one priority. While many people have (and will continue to in the future) replaced genuine OEM generator mixer assembly parts on their own, we recommend calling in a licensed repair technician when upgrading or repairing any part of your unit.
If you feel completely confident in your mechanical skills and basic generator knowledge, you can try to replace your old part with a new OEM generator mixer assembly. Since you just need to disconnect the existing piece, wiggle it free from the loosened mounts, and reinstall the new one in its place, it is seen as a relatively straightforward swap.
Do Different Generators Require Different Mixer Assemblies?
Let it be known that, even though they are all designed fairly similarly, generator mixer assemblies are not universally compatible with all equipment. Every engine model is unique, varying in wattage, displacement, and controller type. If you use a mixer assembly that does not fit your unit’s requirements, it will lead to erratic speed surges, engine stalling, or irreversible internal engine damage.
To find the correct OEM generator mixer assembly, you’ll need to know your unit’s brand, the exact model number, the serial number, and its kilowatt capacity. All of this information can be found on the manufacturer’s data plate, typically located either near the control panel or on the engine housing.
Pro tip: If you’re shopping for a genuine OEM generator mixer assembly but can’t quite figure out if the part will fit your system, feel free to contact us for help. Otherwise, you can type in your Generac model number into our parts look-up page.
Should You Buy an Aftermarket or OEM Generator Mixer Assembly?
When it comes to buying any sort of generator replacement part, investing in an OEM part is always better. OEM (Original Equipment Manufacturer) parts refer to components that were produced and designed for your generator when it was originally built. Crafted by the same manufacturer to the exact factory specifications, OEM generator parts ensure a perfect fit and continued level of performance as your existing set-up.
Aftermarket parts may seem tempting, since they are often listed at lower prices, but they’re an important reminder that you get what you pay for. Since these components are made at other factories, specifically for replacements and repairs, they tend to be ill-fitting and low-quality alternatives to the real deal. Placing an aftermarket generator mixer assembly in your system has the potential to damage or destroy it, leaving you hanging when you need to power on during emergencies.
The Benefits of Buying an OEM Generator Mixer Assembly:
- Fit: OEM generator mixer assemblies are engineered to the exact measurements and specifications of your generator model, eliminating the need for at-home modifications.
- Safety: OEM generator mixer assemblies are tested by a trusted manufacturer to meet safety guidelines and reduce the risk of fuel leaks, failures, and hazardous combustion levels.
- Performance: OEM generator mixer assemblies restore the proper fuel-to-air mixing ratios to ensure maximum efficiency and provide a stable power output.
- Protection: OEM generator mixer assemblies maintain your existing equipment’s warranty, whereas aftermarket pieces can sometimes void the coverage.
- Durability: OEM generator mixer assemblies are constructed to withstand continuous operation and harsh weather conditions.
When you need to buy a generator replacement piece you can trust, there’s only one place to go. At Generator Magic, we stock our shelves with all the OEM Generac parts you could need. If you start to notice that it might be time to swap out your generator mixer assembly, head to our site and see what compatible models you can find.
